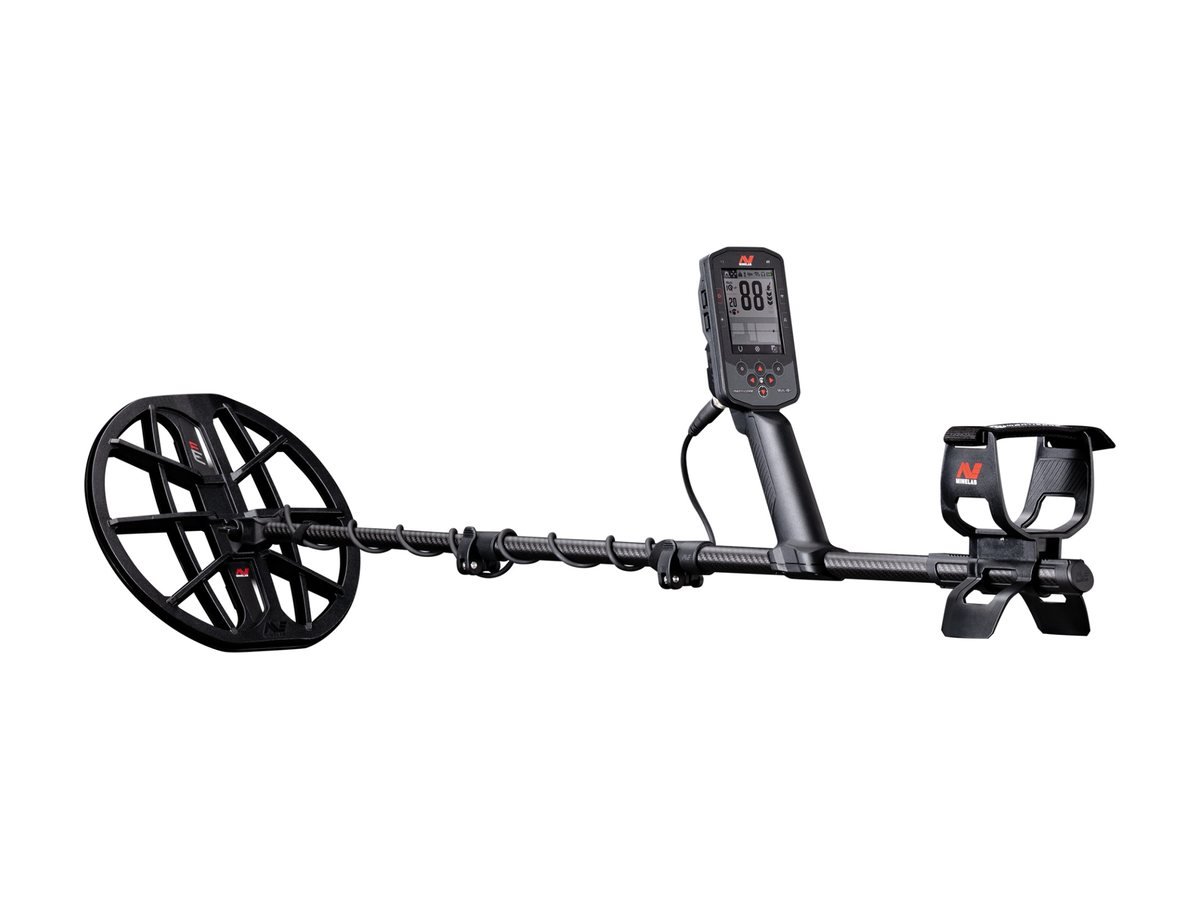

Manticore
Minelab's most powerful all-terrain detector, with up to 50% more power than the Equinox series and a 2D ID map that shows ferrous and conductive readings together.
$1,499.00US dollars. Free shipping to US addresses.
- Technology
- Multi-IQ+ simultaneous multi-frequency
- Frequencies
- Multi-IQ+, 5, 10, 15, 20, 40 kHz
- Search modes
- All-terrain (5), Beach (4), Goldfield (1)
- Sensitivity
- 1 to 35
- New, sealed, with the full Minelab warranty
- Free shipping to US addresses
- We confirm stock and delivery date before you pay
- 30-day returns on unused equipment
Questions about the Manticore? Ask us or call +1 (307) 370-3071.
Overview
The Manticore is built around Multi-IQ+, Minelab's next-generation simultaneous multi-frequency engine. It runs more power into the ground than the Equinox line, which shows up as extra depth on coins and relics in parks, plowed fields and wet beach sand.

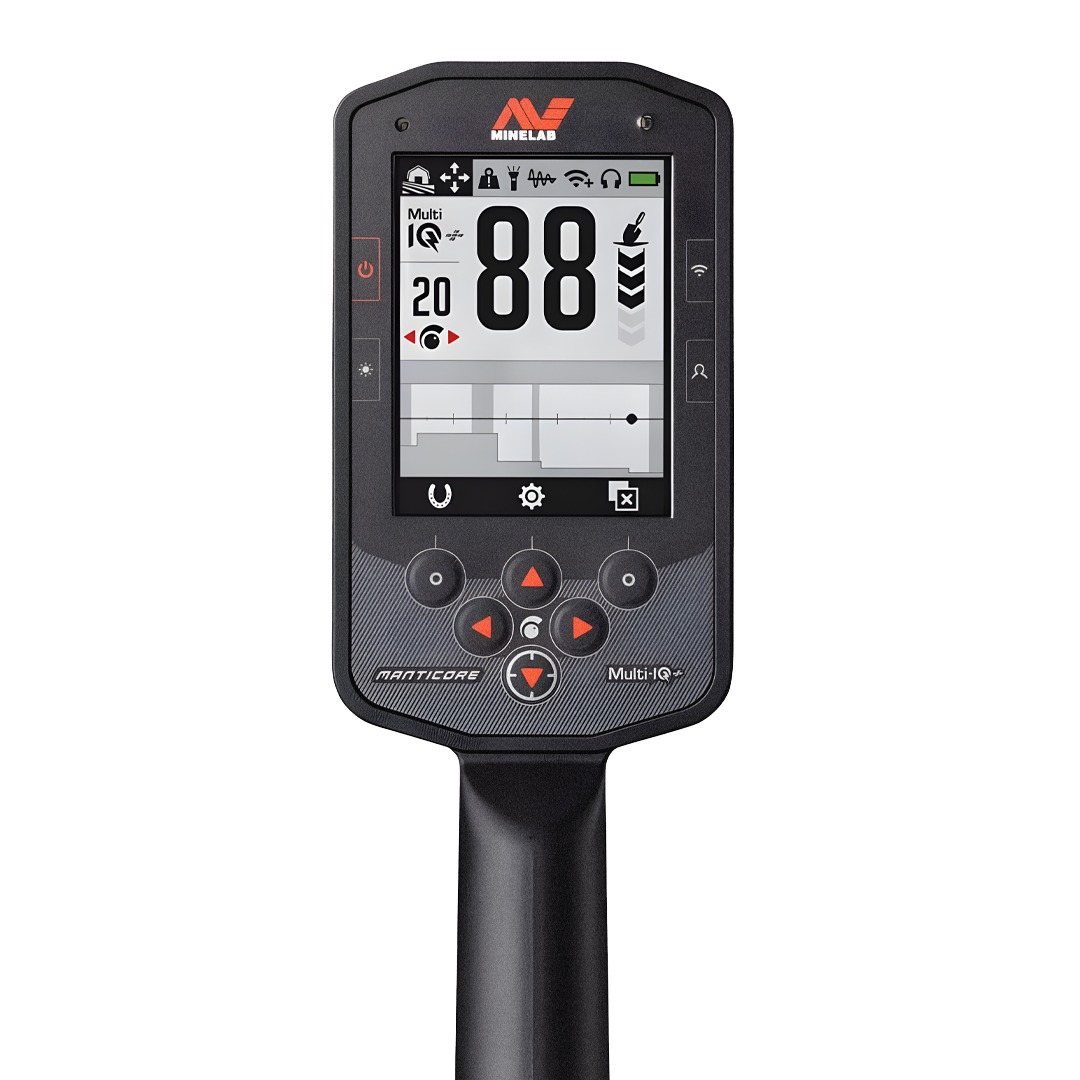

Its standout feature is the 2D ID map. Instead of a single number, each target is plotted by conductivity and ferrous content, so you can see at a glance whether a signal is a deep silver coin or a rusty bottle cap. Ten search modes cover all-terrain, beach and goldfield ground, and recovery speed runs from 0 to 8 for trashy sites.

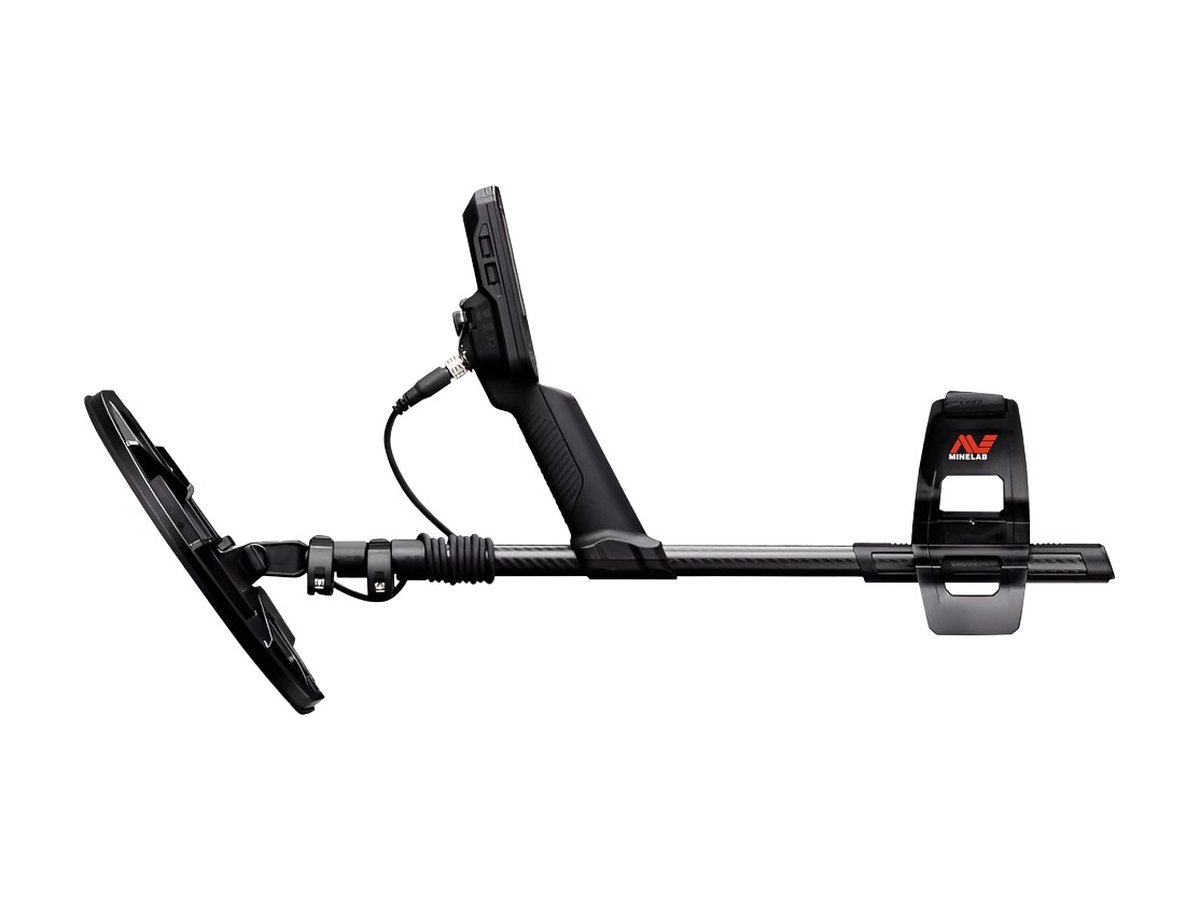

It is waterproof to 16 ft (IP68), folds down to under 25 inches on a carbon-fibre shaft, and ships with ML 105 low-latency wireless headphones.
Highlights
- Multi-IQ+ simultaneous multi-frequency plus 5, 10, 15, 20 and 40 kHz single frequencies
- 2D ID map: 100 conductive and 50 ferrous segments
- 10 search modes for all-terrain, beach and goldfields
- Waterproof to 16 ft (5 m), IP68
- ML 105 wireless headphones included
- 3-year warranty on control box and coil
Specifications
| Technology | Multi-IQ+ simultaneous multi-frequency |
|---|---|
| Frequencies | Multi-IQ+, 5, 10, 15, 20, 40 kHz |
| Search modes | All-terrain (5), Beach (4), Goldfield (1) |
| Sensitivity | 1 to 35 |
| Target ID | 2D: 0 to 99 with ferrous indication |

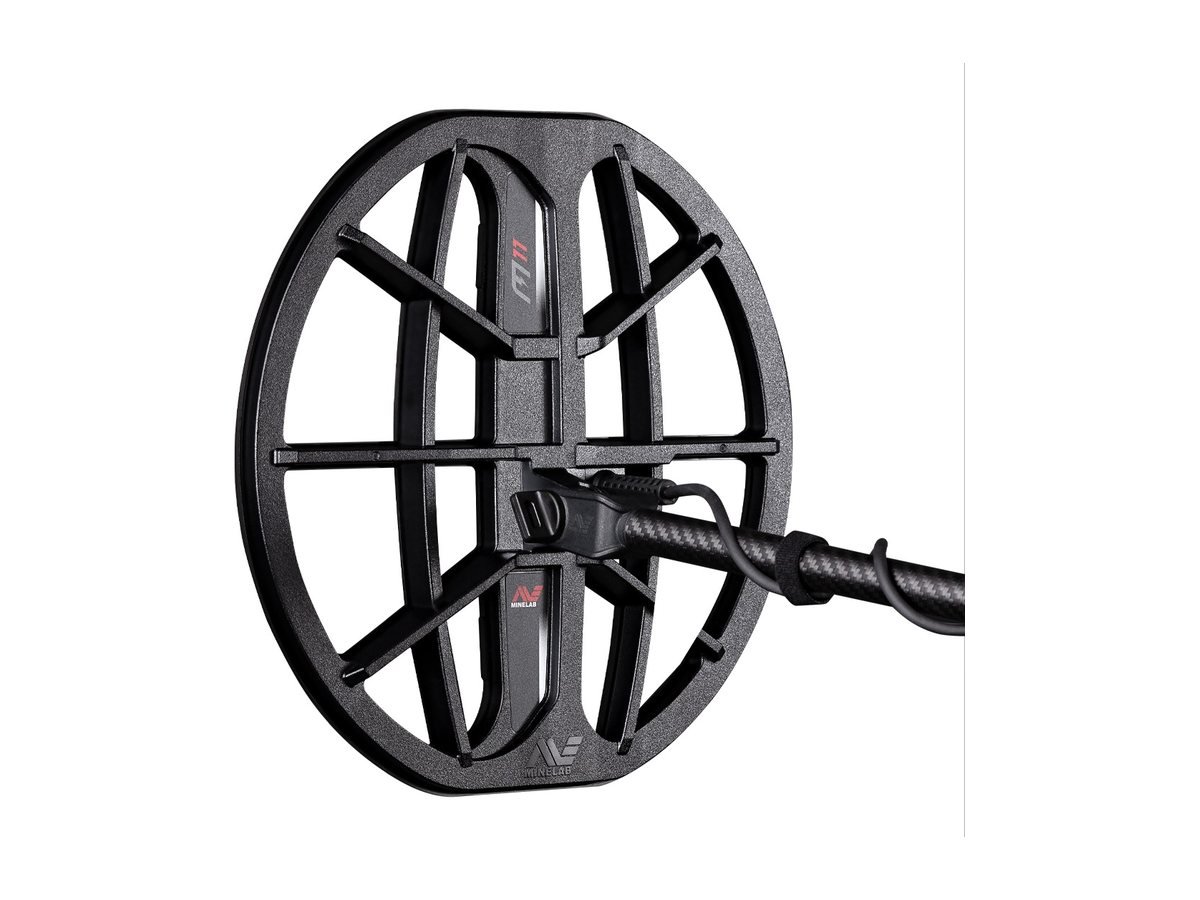

| Standard coil | M11 11" Double-D round |
| Waterproof | To 16 ft (5 m), IP68 |
| Display | Full colour LCD, backlit keypad |
| Battery | 3.7 V, 6800 mAh internal lithium-ion |
| Length | 24.8 in collapsed, 56.7 in extended |
| Weight | 2.9 lb (1.3 kg) |
| Warranty | 3 years, control box and coil |
In the box
Manticore detector, M11 11" Double-D coil, ML 105 wireless headphones with cable and hard case, magnetic USB charging cable, screen protectors.
Specifications from Minelab, checked October 2026.
