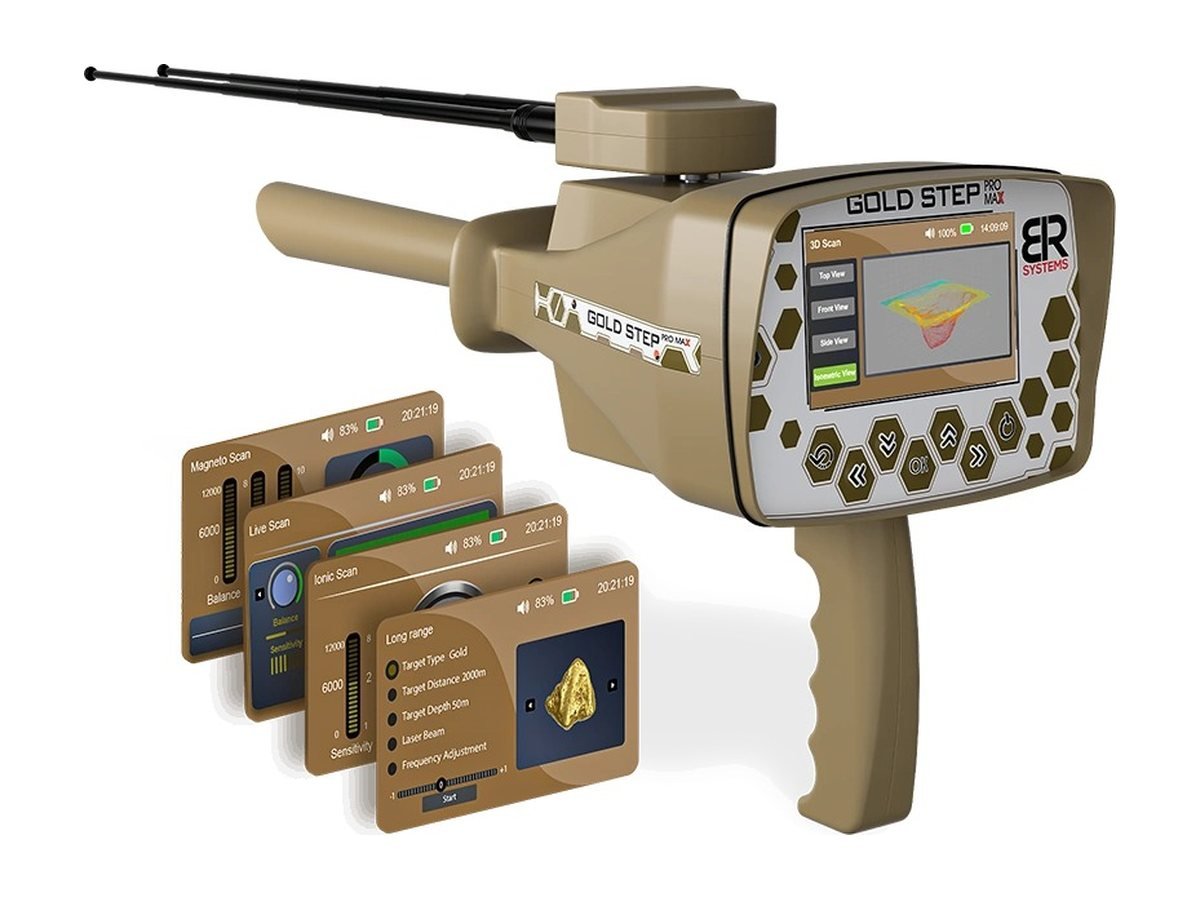

Gold Step Pro Max
BR Systems' flagship: 3D Scan, Live Scan, long-range, ionic and magneto systems in a redesigned, heat and moisture resistant chassis.
$5,950.00US dollars. Free shipping to US addresses.
- Type
- Multi-system detector with 3D imaging
- Systems
- 3D Scan, Live Scan, Long-Range, Ionic, Magneto
- Depth
- 3D scan up to 16 m; long-range up to 50 m (maker figures)
- Storage
- Six scan saves
- New, sealed, with the full BR Systems warranty
- Free shipping to US addresses
- We confirm stock and delivery date before you pay
- 30-day returns on unused equipment
Questions about the Gold Step Pro Max? Ask us or call +1 (307) 370-3071.
Overview
The Gold Step Pro Max has been BR Systems' top model for more than a decade, and the current edition is fully redesigned inside and out. Five detection systems cover 3D Scan, Live Scan, long-range, ionic and magneto searching.
Before each scan the Smart Auto-Calibration system reads soil composition, magnetic field and conductivity and adjusts itself, from mineralised soil to rocky and sandy ground. The BRF filter cuts interference at the site, and the chassis is built from heat-resistant, moisture-protected materials for long days in the field.
Highlights
- 5 systems: 3D Scan, Live Scan, Long-Range, Ionic, Magneto
- Smart Auto-Calibration for each terrain
- 3D scan to 16 m, long-range to 50 m depth (maker figures)
- Stores six scans
- About 20 hours per charge
- Power Max 55 scanner included
Specifications
| Type | Multi-system detector with 3D imaging |
|---|---|
| Systems | 3D Scan, Live Scan, Long-Range, Ionic, Magneto |
| Depth | 3D scan up to 16 m; long-range up to 50 m (maker figures) |
| Storage | Six scan saves |
| Processor | Microchip PIC32 |
| Display | 4.3" colour, 480 x 272, sunlight readable |
| Battery | 3.7 V, 7800 mAh, about 20 hours; 3.5 h charge |
| Calibration | Automatic Ground Calibration (AGC) |
| Signal filter | BRF signal filtering |
| Laser | B.U.M. auto detection, G.L.Y. laser guidance |
| Languages | English, French, German, Spanish, Turkish, Arabic |
In the box
Gold Step Pro Max unit, Power Max 55 scanner, full accessory kit, carry bag, manual.
Depth and range figures are the manufacturer's stated maximums. Results vary with soil, target size and conditions.
Specifications from BR Systems, checked October 2026.
