Gamma
Three imaging systems show gold, metal targets and voids on screen, with a tablet for a larger 3D view.
$7,400.00US dollars. Free shipping to US addresses.
- Type
- 3D ground imaging scanner
- Systems
- 3D Ground Imaging, Live Scan, Gradio Smart
- Depth
- Up to 30 m, maker figure
- Display
- 5" TFT colour, 800 x 480
- New, sealed, with the full Ajax warranty
- Free shipping to US addresses
- We confirm stock and delivery date before you pay
- 30-day returns on unused equipment
Questions about the Gamma? Ask us or call +1 (307) 370-3071.
Overview

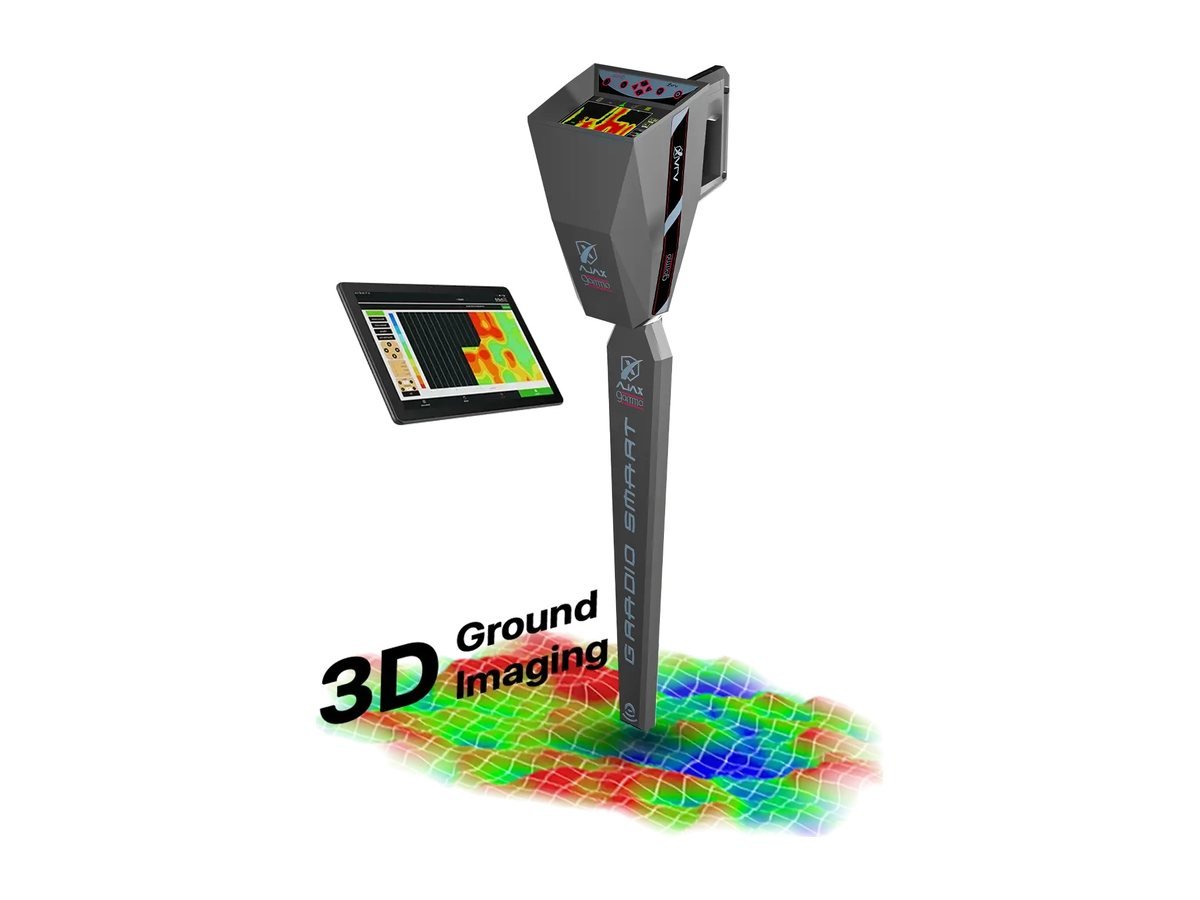

The Gamma is a 3D scanner for prospectors and treasure hunters. 3D Ground Imaging maps a scanned area, Live Scan shows targets in real time as you walk, and the Gradio Smart system works handheld for quick checks.
Targets and cavities are displayed directly on the device screen, and a tablet is supplied to view results on a bigger display. Ajax rates the imaging systems to 30 m depth.
Highlights
- 3D Ground Imaging (maker-rated 30 m)
- Live Scan (maker-rated 30 m)
- Gradio Smart handheld system (10 m)

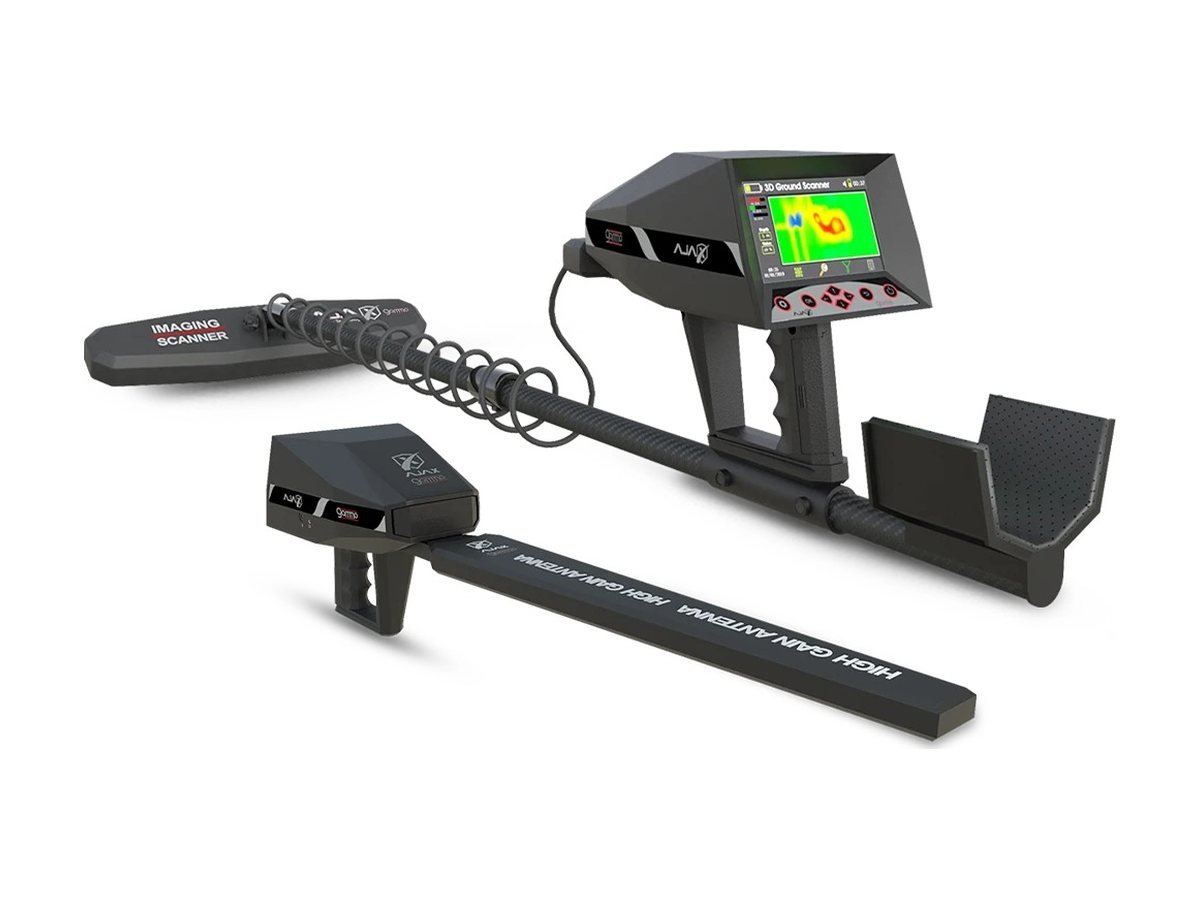

- Imaging scanner and tablet included
- About 10 hours per charge
Specifications
| Type | 3D ground imaging scanner |
|---|---|
| Systems | 3D Ground Imaging, Live Scan, Gradio Smart |
| Depth | Up to 30 m, maker figure |
| Display | 5" TFT colour, 800 x 480 |
| Battery | 7.4 V, 3300 mAh, about 10 hours |
| Storage | 1 GB, up to 1000 scans |
| Bluetooth | 2.4 GHz |
| Languages | 8 |
| Warranty | 2 years |
| Package weight | 15.4 lb (7 kg) |
Depth and range figures are the manufacturer's stated maximums. Results vary with soil, target size and conditions.
Specifications from Ajax, checked October 2026.
